Product specification
battery Model: 12V 10A
Battery Type: 18650 Lithium-ion battery cell
Nominal voltage: 12V
Nominal capacity : 10Ah
Combination: 3S5P
Instantaneous discharge current: 20A
Continuous discharge current: 10A
Charge voltage: 12.6V
Cycle times: more than 1000 cycles
Charging temperature : 0~45 ℃
Discharge temperature : -20 ~ 60 ℃
Storage temperature : -20 ~ 45 ℃
Weight: About 0.92kg
Battery size: 90*60*156mm
Operating voltage range: 9.6V-12.6V
Overcharge protection voltage : 12.6V + 0.05V
Over discharge protection voltage : 9.6V + 0.05V
Packing list
1. 12V 10Ah Lithium battery pack

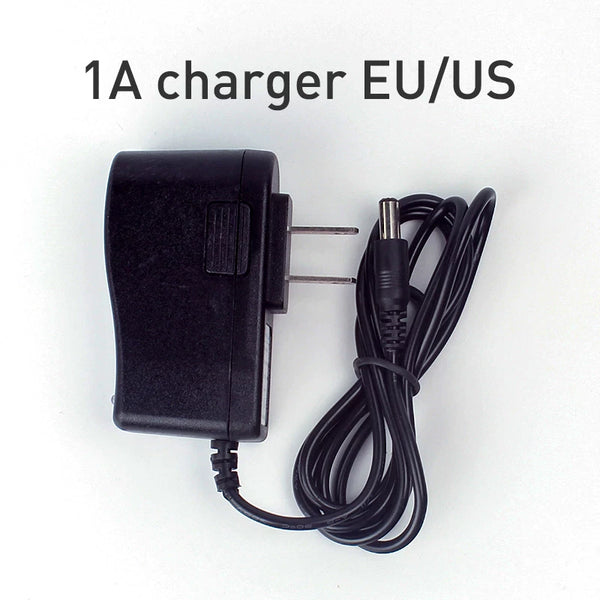

2. 12.6V 1A charger (US, EU charger)
3. 0.25m DIY gift
